Oxygen Generator

YC-1
It can be customized according to user needs. The production cycle is to be determined after negotiation.

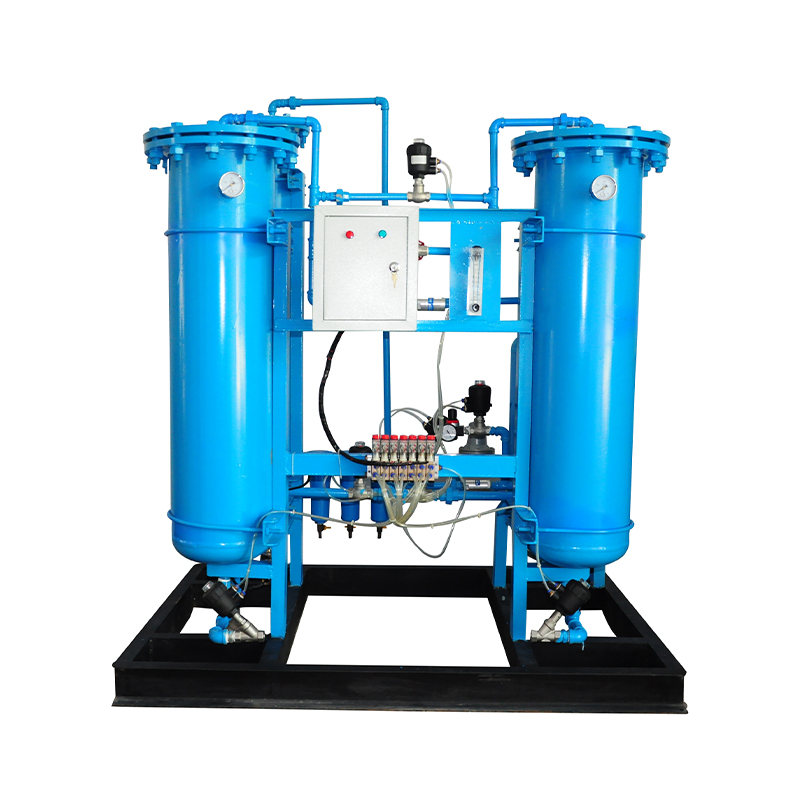

The oxygen generator separates air mainly by two adsorption towers filled with molecular sieves. Under normal temperature conditions, the compressed air is filtered, dehydrated, dried and purified before entering the adsorption tower. In the adsorption tower, nitrogen and other gases in the air are adsorbed by the molecular sieve, and oxygen is enriched in the gas phase, flowing out from the outlet and stored in the oxygen buffer tank. In the other tower, the molecular sieve that has completed adsorption is rapidly depressurized to analyze the adsorbed components. The two towers are alternately circulated to obtain cheap oxygen with a purity of ≥90%. The automatic switching of valves in the entire system is automatically controlled by the time controller.

Consult

Features
Technical Indicators
Overall Dimension

Technical features ●Easy to install ●Compact structure, overall skid-mounted, small footprint, no infrastructure investment required, low investment. ●High-quality zeolite molecular sieve. ●With large adsorption capacity, high pressure resistance and long service life. ●More economical than other oxygen supply methods. ●PSA process is a simple oxygen production method, using air as raw material, and the energy consumption is only the electricity consumed by the air compressor, with the advantages of low operating cost, low energy consumption and high efficiency. ●Mechatronics design realizes automatic operation. ●The operation realizes true unmanned operation. The advanced control system makes the operation simpler, thereby ensuring the stability of gas purity and flow rate. Main uses of oxygen generator Applied in metallurgical combustion, chemical industry, environmental protection, building materials, light industry, medical treatment, aquaculture, biotechnology, sewage treatment and other fields.
